Titan Series
Steel Trench Boxes

Mainline Sewer & Water Installation and Specialty Trench Box Applications

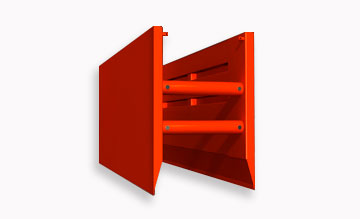

Titan Basic 5

Titan Basic Series | Accessories Sold Separately

Trenching made affordable. Kundel’s Titan Basic series is a standard, no-frills line of affordable trench safety equipment. This all-steel, solid-welded series is perfect for the occasional user doing mainline work. The Titan Basic 5 model is a series of shields built for the small excavators and works well in 12′ length sewer line installations. The weight, durability and depth ratings for this model are ideal for any contractor. If you have a machine in the 6 to 19 metric ton class, this is a great shield to consider. This will definitely provide the protection you need while increasing mainline sewer production.

Features & Benefits


  • Tamping Blocks
  • Lifting Lugs
  • Forged Spreader Pins
  • High Taper
  • 3/8” x 3” Cutting Bar
  • Solid Welded

Specifications


Primary Uses

Occasional Mainline Work

Excavator Weight Range

12K to 38K

Production Depth

14’ to 17’

Side Wall

– 5”

Product Literature



Full Spec Sheet

Titan Basic 6

Titan Basic Series | Accessories Sold Separately

The Titan Basic Series 6 is an all steel trench shield that is designed for occasional mainline work. The 17’ C-Soil Depth rating combined with a sloping program will cover a maximum range of job situations. The weight and durability, as well as its affordability, make it a perfect match for excavators in the 19 to 24 metric ton class. More room allows for faster mainline production for jobs laying up to 18’ lengths of pipe. An alternative depth rating is available. (25’ C-Soil)

Features & Benefits


  • Tamping Blocks
  • Lifting Lugs
  • Forged Spreader Pins
  • High Taper
  • 3/8” x 3” Cutting Bar
  • Solid Welded

Specifications


Primary Uses

Occasional Mainline Work

Excavator Weight Range

38K to 48K

Production Depth

15’ to 17’

Side Wall

– 6”

Product Literature



Full Spec Sheet

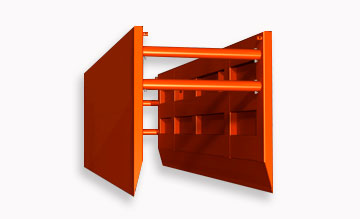

Titan 5 Lite

Titan Series | Accessories Sold Separately

Titan Lite Shields are built tough, yet are extremely manageable in the trench. The Titan 5 Lite is an all steel trench box that is designed for light duty trenching. Innovative engineering allows for thicker steel on the perimeter, where it is needed, while the continuous vertical and horizontal formed steel members give extreme strength in the trench. Despite its toughness and strength, it is remarkably easy to lift and move in the trench.

Features & Benefits


  • 18” High Tapered, Reinforced Knife Edge for more room in the pipe zone
  • Light Weight Design for easy movement in the trench
  • 5” Solid Steel Sockets
  • 3/4” Thick Pounding Pads
  • 2-1/2” Solid Stacking Lug Bar
  • 3/8” x 3” Cutting Bar
  • Formed Steel Design with Continuous Steel Members
  • Easy Slide Outside Edge
  • Once “C” Soil Depth Rating
  • Perfectly positioned Lift Points for easy handling
  • Internal Shelving for storage of tools and miscellaneous items

Specifications


Primary Uses

Mainline Work

Excavator Weight Range

21K to 64K

Production Depth

8’ to 16’

Side Wall

5”

Product Literature



Full Spec Sheet

Titan Hybrid 5

Titan Hybrid Series | Accessories Sold Separately

Like the Titan Hybrid 5 series, the Titan Hybrid Series 5 is an all steel trench shield that is designed for occasional mainline work. With a length of 24’, the 15’ C-Soil Depth rating combined with a sloping program will cover a maximum range of job situations. The weight and durability, as well as its affordability, make it a perfect match for excavators in the 19 to 24 metric ton class. More room allows for faster mainline production for jobs laying up to 18’ lengths of pipe. An alternative depth rating is available. (25’ C-Soil)

Features & Benefits


  • Tamping Blocks
  • Lifting Lugs
  • Forged Spreader Pins
  • High Taper
  • 3/8” x 3” Cutting Bar
  • Solid Welded

Specifications


Primary Uses

Occasional Mainline Work

Excavator Weight Range

38K to 48K

Production Depth

15’ to 17’

Side Wall

– 6”

Product Literature



Full Spec Sheet

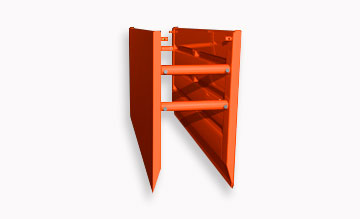

Titan Plus 3

Plus Series | Accessories Sold Separately

Strong and durable, yet designed to be light in the trench. Kundel’s Titan Plus series has a strong, all-steel, solid-welded design that has been specially engineered to give extreme strength where it’s needed – without all the extra weight. These shields rely on real world engineering and thick, reinforced formed steel for unwavering toughness in the trench. This series is perfect for the occasional user doing mainline work. The TITAN Plus 3 is an all-steel design trench box that is solid welded and designed for medium duty trench safety work.

Features & Benefits


  • Formed Steel Design
  • Continuous Steel Members
  • 18” High Tapered Knife Edge
  • Internal Pounding Members
  • Reinforced Knife Edge
  • Internal Stacking System, Easy Slide Outside Edge
  • One C Soil Depth Rating
  • Vertical Reinforced Pounding Area
  • Reinforced Through Wall Sockets
  • 5” Solid Steel Sockets
  • 3/4” Thick Pounding Pads
  • 2-1/2” Solid Stacking Lug Bar
  • 1/2” x 3” Cutting Bar

Specifications


Primary Uses

Spot Repairs and Mainline Work

Excavator Weight Range

22K to 78K

Production Depth

8’ to 16’

Side Wall

3-1/2”

Product Literature



Full Spec Sheet

Titan Plus 5

Plus Series | Accessories Sold Separately

Strong and durable, yet designed to be light in the trench. Kundel’s Titan Plus series has a strong, all-steel, solid-welded design that has been specially engineered to give extreme strength where it’s needed – without all the extra weight. These shields rely on real world engineering and thick, reinforced formed steel for unwavering toughness in the trench. This series is perfect for the occasional user doing mainline work. The TITAN Plus 5 is an all-steel design trench box that is solid welded and designed for medium duty trench safety work.

Features & Benefits


  • Formed Steel Design
  • Continuous Steel Members
  • 18” High Tapered Knife Edge
  • Internal Pounding Members
  • Reinforced Knife Edge
  • Internal Stacking System, Easy Slide Outside Edge
  • One C Soil Depth Rating
  • Vertical Reinforced Pounding Area
  • Reinforced Through Wall Sockets
  • 5” Solid Steel Sockets
  • 1-1/4” Thick Pounding Pads
  • 2-1/2” Solid Stacking Lug Bar
  • 1/2” x 3” Cutting Bar

Specifications


Primary Uses

Mainline Work

Excavator Weight Range

21K to 76K

Production Depth

12’ to 20’

Side Wall

5”

Product Literature



Full Spec Sheet

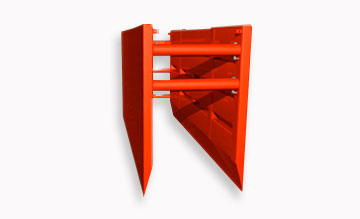

Titan Plus 6

Plus Series | Accessories Sold Separately

Strong and durable, yet designed to be light in the trench. Kundel’s Titan Plus series has a strong, all-steel, solid-welded design that has been specially engineered to give extreme strength where it’s needed – without all the extra weight. These shields rely on real world engineering and thick, reinforced formed steel for unwavering toughness in the trench. This series is perfect for the occasional user doing mainline work. The TITAN Plus 6 is an all-steel designed trench box that is solid welded and built for medium duty trench safety work.

Features & Benefits


  • Formed Steel Design
  • Continuous Steel Members
  • 18” High Tapered Knife Edge
  • Internal Pounding Members
  • Reinforced Knife Edge
  • Internal Stacking System, Easy Slide Outside Edge
  • One C Soil Depth Rating
  • Vertical Reinforced Pounding Area
  • Reinforced Through Wall Sockets
  • 7” Solid Steel Sockets
  • 1-1/2” Thick Pounding Pads
  • 3” Solid Stacking Lug Bar
  • 1/2” x 3” Cutting Bar

Specifications


Primary Uses

Mainline Work

Excavator Weight Range

34K to 94K

Production Depth

16’ to 30’

Side Wall

6-3/4”

Product Literature



Full Spec Sheet

Titan Plus 8

Plus Series | Accessories Sold Separately

Strong and durable, yet designed to be light in the trench. Kundel’s Titan Plus series has a strong, all-steel, solid-welded design that has been specially engineered to give extreme strength where it’s needed – without all the extra weight. These shields rely on real world engineering and thick, reinforced formed steel for unwavering toughness in the trench. This series is perfect for the occasional user doing mainline work. The TITAN Plus 8 is an all-steel designed trench box that is solid welded and built for medium duty trench safety work.

Features & Benefits


  • Formed Steel Design
  • Continuous Steel Members
  • 18” High Tapered Knife Edge
  • Internal Pounding Members
  • Reinforced Knife Edge
  • Internal Stacking System, Easy Slide Outside Edge
  • One C Soil Depth Rating
  • Vertical Reinforced Pounding Area
  • Reinforced Through Wall Sockets
  • 7” Solid Steel Sockets
  • 1-1/2” Thick Pounding Pads
  • 3” Solid Stacking Lug Bar
  • 1/2” x 3” Cutting Bar

Specifications


Primary Uses

Mainline Work

Excavator Weight Range

45K to 120K

Production Depth

20’ to 34’

Side Wall

– 8-1/2”

Product Literature



Full Spec Sheet

Titan Reinforced Series

Reinforced Series | Accessories Sold Separately

Lorem ipsum dolor sit amet, consectetuer adipiscing elit, sed diam nonummy nibh euismod tincidunt ut laoreet dolore magna aliquam erat volutpat. Ut wisi enim ad minim veniam, quis nostrud exerci tation ullamcorper suscipit lobortis nisl ut aliquip ex ea commodo consequat. Duis autem vel eum iriure dolor in hendrerit in vulputate velit esse molestie consequat, vel illum dolore eu feugiat nulla facilisis at vero eros et accumsan et iusto odio dignissim qui blandit praesent luptatum zzril delenit augue duis dolore te feugait nulla facilisi.
Lorem ipsum dolor sit amet, cons ectetuer adipiscing elit, sed diam nonummy nibh euismod tincidunt ut laoreet dolore magna aliquam erat volutpat. Ut wisi enim ad minim veniam, quis nostrud exerci tation ullam .

Features & Benefits


  • Formed Steel Design with Continuous Steel Members
  • 18” High-Tapered, Reinforced Knife Edge – for more room in the pipe zone
  • Internal Pounding Members and Stacking System
  • Easy Slide Outside Edge
  • One C Soil Depth Rating
  • Vertical Reinforced Pounding Area for easy drive
  • Reinforced Through-Wall Sockets
  • 6” (2X) Solid Steel Sockets
  • 1-1/2” Thick Pounding Pads
  • 3” Solid Stacking Lug Bar
  • 1/2” x 3” Cutting Bar

Specifications


Primary Uses

Mainline Work

Excavator Weight Range

44K to 117K

Production Depth

20’ to 42’

Side Wall

– 8-1/2”

Product Literature



Full Spec Sheet

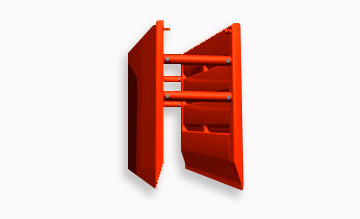

Titan Brute 3

Brute Series | Accessories Sold Separately

Tough, durable design. The name means what it says: Built tough for keeping the job moving in the roughest conditions, it’s a BRUTE. The all-steel, solid-welded and double wall design of the Titan Brute Shields was made for heavy-duty trench safety work. These shields rely on thick, reinforced formed steel for unwavering toughness in the trench. They were engineered for durability and deep depths. Each shield is crafted with high taper reinforced knife edges, which increase the pipe area by allowing a tighter trench. Uninterrupted reinforced vertical steel end tubes mean “no bend back ends.” It’s also easy to handle with its perfectly positioned lift points. Spreaders are located on the very outside edge for maximum inside clearance.

Features & Benefits


  • Formed Steel Design with Continuous Steel Members
  • 18” High-Tapered, Reinforced Knife Edge – for more room in the pipe zone
  • Internal Pounding Members and Stacking System
  • Easy Slide Outside Edge
  • One C Soil Depth Rating
  • Vertical Reinforced Pounding Area for easy drive
  • Reinforced Through-Wall Sockets
  • 7” Solid Steel Sockets
  • 1” Thick Pounding Pads
  • 2-1/2” Solid Stacking Lug Bar
  • 1/2” x 3” Cutting Bar

Specifications


Primary Uses

Spot Repairs and Mainline Work

Excavator Weight Range

32K to 98K

Production Depth

16’ to 28’

Side Wall

– 5”

Product Literature



Full Spec Sheet

Titan Brute 5

Brute Series | Accessories Sold Separately

Tough, durable design. The name means what it says: Built tough for keeping the job moving in the roughest conditions, it’s a BRUTE. The all-steel, solid-welded and double wall design of the Titan Brute Shields was made for heavy-duty trench safety work. These shields rely on thick, reinforced formed steel for unwavering toughness in the trench. They were engineered for durability and deep depths. Each shield is crafted with high taper reinforced knife edges, which increase the pipe area by allowing a tighter trench. Uninterrupted reinforced vertical steel end tubes mean “no bend back ends.” It’s also easy to handle with its perfectly positioned lift points. Spreaders are located on the very outside edge for maximum inside clearance.

Features & Benefits


  • Formed Steel Design with Continuous Steel Members
  • 18” High-Tapered, Reinforced Knife Edge – for more room in the pipe zone
  • Internal Pounding Members and Stacking System
  • Easy Slide Outside Edge
  • One C Soil Depth Rating
  • Vertical Reinforced Pounding Area for easy drive
  • Reinforced Through-Wall Sockets
  • 7” Solid Steel Sockets
  • 1-1/2” Thick Pounding Pads
  • 2-1/2” Solid Stacking Lug Bar
  • 1/2” x 3” Cutting Bar

Specifications


Primary Uses

Mainline Work

Excavator Weight Range

32K to 98K

Production Depth

16’ to 28’

Side Wall

– 5”

Product Literature



Full Spec Sheet

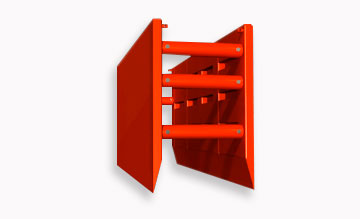

Titan Brute 6

Brute Series | Accessories Sold Separately

Tough, durable design. The name means what it says: Built tough for keeping the job moving in the roughest conditions, it’s a BRUTE. The all-steel, solid-welded and double wall design of the Titan Brute Shields was made for heavy-duty trench safety work. These shields rely on thick, reinforced formed steel for unwavering toughness in the trench. They were engineered for durability and deep depths. Each shield is crafted with high taper reinforced knife edges, which increase the pipe area by allowing a tighter trench. Uninterrupted reinforced vertical steel end tubes mean “no bend back ends.” It’s also easy to handle with its perfectly positioned lift points. Spreaders are located on the very outside edge for maximum inside clearance.

Features & Benefits


  • Formed Steel Design with Continuous Steel Members
  • 18” High-Tapered, Reinforced Knife Edge – for more room in the pipe zone
  • Internal Pounding Members and Stacking System
  • Easy Slide Outside Edge
  • One C Soil Depth Rating
  • Vertical Reinforced Pounding Area for easy drive
  • Reinforced Through-Wall Sockets
  • 6” (2X) Solid Steel Sockets
  • 1-1/2” Thick Pounding Pads
  • 3” Solid Stacking Lug Bar
  • 1/2” x 3” Cutting Bar

Specifications


Primary Uses

Mainline Work

Excavator Weight Range

38K to 103K

Production Depth

18’ to 34’

Side Wall

6-3/4”

Product Literature



Full Spec Sheet

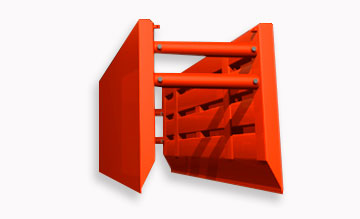

Titan Brute 8

Brute Series | Accessories Sold Separately

Tough, durable design. The name means what it says: Built tough for keeping the job moving in the roughest conditions, it’s a BRUTE. The all-steel, solid-welded and double wall design of the Titan Brute Shields was made for heavy-duty trench safety work. These shields rely on thick, reinforced formed steel for unwavering toughness in the trench. They were engineered for durability and deep depths. Each shield is crafted with high taper reinforced knife edges, which increase the pipe area by allowing a tighter trench. Uninterrupted reinforced vertical steel end tubes mean “no bend back ends.” It’s also easy to handle with its perfectly positioned lift points. Spreaders are located on the very outside edge for maximum inside clearance.

Features & Benefits


  • Formed Steel Design with Continuous Steel Members
  • 18” High-Tapered, Reinforced Knife Edge – for more room in the pipe zone
  • Internal Pounding Members and Stacking System
  • Easy Slide Outside Edge
  • One C Soil Depth Rating
  • Vertical Reinforced Pounding Area for easy drive
  • Reinforced Through-Wall Sockets
  • 6” (2X) Solid Steel Sockets
  • 1-1/2” Thick Pounding Pads
  • 3” Solid Stacking Lug Bar
  • 1/2” x 3” Cutting Bar

Specifications


Primary Uses

Mainline Work

Excavator Weight Range

44K to 117K

Production Depth

20’ to 42’

Side Wall

– 8-1/2”

Product Literature



Full Spec Sheet
