Titan Series
Steel Trench Boxes

Mainline Sewer & Water Installation and Specialty Trench Box Applications

5 Long-N-Lite

Titan Series | Accessories Sold Separately

Long, light and strong. The Titan Long-N-Lite shield brings two worlds together: long pipe and lighter excavators. Now you can lay longer pipe without increasing your equipment cost. Our innovative engineering allows for thicker steel on the perimeter, where it’s needed, while the continuous vertical and horizontal formed steel members give extreme strength in the trench. Its all-steel design features pounding pads, reinforced knife edge, as well as continuous horizontal and vertical steel members, for maximum durability and life in the trench.

Features & Benefits


  • Formed Steel Design with Continuous Steel Members
  • Internal Pounding Members and Stacking System
  • Stacking Lugs – inside shield for safe installation
  • Lift Points and Light Weight Design – for easy handling, positioning and movement in the trench
  • Internal Shelving – for storage of tools and miscellaneous items
  • 18” High-Tapered, Reinforced Knife Edge – for more room in the pipe zone
  • Easy Slide Outside Edge
  • One C Soil Depth Rating
  • Vertical Reinforced Pounding Area
  • Reinforced Through-Wall Sockets
  • 5” Solid Steel Sockets
  • 3/8” Thick Pounding Pads
  • 2-1/2” Solid Stacking Lug Bar
  • 3/8” x 3” Cutting Bar

Specifications


Excavator Weight Range

36K to 45K

Production Depth

8’ to 16’

Side Wall

5”

Product Literature



Full Spec Sheet

Drive Boxes

Titan Series | Accessories Sold Separately

The Titan Drive Box moves fast in narrow excavations. Our all-steel Drive Box has a solid-welded, double wall design, and is engineered with built-in racking adapters and robust pounding pads to help rapidly drive and move the box in tight excavations. High taper reinforced knife edge increases pipe area, allowing for an even tighter trench. Uninterrupted reinforced vertical steel members result in “no bend ends,” and perfectly positioned lift points mean easy handling.

Features & Benefits


  • 18” Knife Edge
  • Solid Steel Sockets
  • Power Rigging Points
  • Reinforced Standard Titan Side Walls for Driving
  • Full Range of Sizes & Models to Match Your Requirements
  • Solid Stacking Lug Bar
  • Rigid Internal Stacking System for Quick Assembly
  • Rotating Wedge for Easy Drive and Extract
  • Extended Cutting Bar (1/2” x 3”)
  • Built-In Racking Adapters
  • All Steel Design
  • Robust, Internal Pounding Members
  • Through Wall Spreader Sockets

Specifications


Primary Uses

Mainline Work Requiring Driving

Excavator Weight Range

Varies

Production Depth

Varies

Side Wall

Varies

Product Literature



Full Spec Sheet

Pit Box

Titan Series | Accessories Sold Separately

Making pit installations fast, safe, and easy. Whether you’re installing a fuel tank, storage tank, or a tank for a septic system, our Titan Pit Box will cover all of your pit installation needs.

Features & Benefits


  • 18” Knife Edge
  • 6” (2X) Solid Steel Sockets
  • 1-1/2” Thick Pounding Pads
  • 3” Solid Stacking Lug Bar
  • 1/2” x 3” Cutting Bar
  • Spreader Beams

Specifications


Primary Uses

Mainline Work

Side Wall

Varies

T1 Trench Plate

Titan Series | Accessories Sold Separately

This multifunctional dynamo will be the most sought after equipment in your arsenal. The TITAN T1 Trench Plate is an all-steel trench plate that is coupled with Kundel spreader adapters and built for use in light trench safety work. This rough and tumble tool can do it all: secure dangerous ends of a drag box, function as a waler to open up a trench fast in soft soil, create a thin wall trench box, or span an open trench with bridging options. A full range of sizes are available and the possibilities are endless. Call us to speak with a representative to help you find the best equipment for your needs.

Features & Benefits


  • Multifunctional: Secures Open Ends; Drives Fast to Stop Oozing Soil; Creates a Thin-Wall Trench Box, Spans Open Trench with Bridging Options
  • 3” Solid Steel Sockets
  • 4X’s stronger than a 1” road plate
  • PE Certified

Specifications


Primary Uses

Manholes, Spot Repairs

Side Wall

2.5”

Product Literature



Full Spec Sheet

Slide Boxes

Titan Series | Accessories Sold Separately

Just dig, slide, and lay more pipe with low vibration installation. The Titan Slide Box is an all-steel trench shield that is designed with standard Titan side-wall panels having specially designed end tubes that slide into vertical rails. Its flexible-use design minimizes soil disturbances and allows for smaller excavations, making it an excellent choice for excavations near structures and existing utilities.

Features & Benefits


  • High-Taper 18” Reinforced Knife Edge
  • Solid Steel Sockets
  • Thick Pounding Pads
  • Solid Stacking Lug Bar
  • 1/2” x 3” Cutting Bar
  • Racking Rails
  • Reinforced Standard Titan Side Walls for Driving
  • One-Time, Easy Assembly
  • Flexible Use

Specifications


Primary Uses

Mainline Work Requiring Sliding

Excavator Weight Range

Varies

Production Depth

Varies

Side Wall

Varies

Product Literature



Full Spec Sheet

Telescopic Boxes

Titan Series | Accessories Sold Separately

Drag it. Shore it. Get the job done fast! The Titan Telescopic Box is an all-steel trench shield that is designed for telescopic applications. It’s a cross between a drag box system and a slide rail system. The system is assembled from standard components of a drag box, socket rails, and rolling spreaders. The dragging operation is done out of the area of influence and final stage is closed excavation, making for a fast production shoring system. No leapfrogging! No lost time of reassembly!

Features & Benefits


  • 18” Knife Edge
  • Solid Steel Sockets
  • Thick Pounding Pads
  • Solid Stacking Lug Bar
  • 1/2” x 3” Cutting Bar
  • Easy, One-Time Assembly and Flexible Use
  • Lifting Lugs
  • Stackable Rails & Panels
  • Reinforced Standard Titan Side Walls for Driving

Specifications


Primary Uses

Mainline Work Requiring Telescopic Applications

Excavator Weight Range

Varies

Production Depth

Varies

Side Wall

Varies

Product Literature



Full Spec Sheet

VanGuard

Titan Series | Accessories Sold Separately

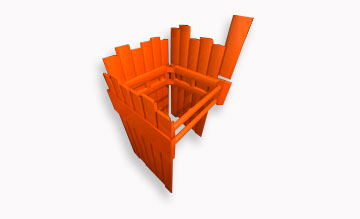

Painless solution for your heavy-duty problems. The Titan Vanguard is an all-steel drive panel system that is designed for heavy duty trenching. Made up of 24” wide interlocking vertical panels, you can effortlessly loosen and slide each panel to move around any obstruction or pipe as you lower your box into the trench. We make it easy for you to get in, get out, and get the job done.

Features & Benefits


  • 12” Knife Edge
  • 1/2” Thick Pounding Pads
  • 1/2” x 3” Cutting Bar

Specifications


Primary Uses

Spot Repair, Utility Work

Side Wall

3”

Product Literature



Full Spec Sheet

Waler System

Titan Series | Accessories Sold Separately

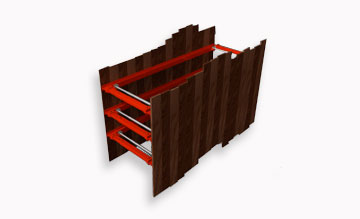

Maximum protection coupled with versatility and flexibility. The Titan Waler System is an all-steel or aluminum trench waler system that is designed for heavy duty trenching. This unique system allows for configuration around a pit or trench that has an existing utility or other obstruction in the way. The walers allow for sheeting use at different elevations to maintain shoring around these structures.

Features & Benefits


  • Hydraulic Struts
  • Strong Spreader Tubes
  • Reinforced Beam Members

Specifications


Primary Uses

Mainline Work

Side Wall

Varies
