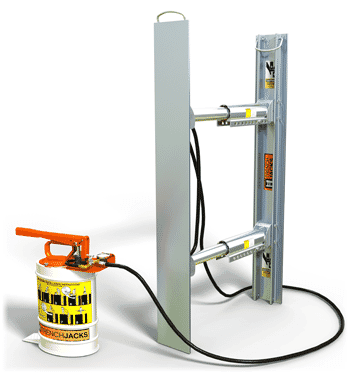

TRENCHJACK™ Kit Sizes

Your Safety is Our Priority

Quick Search

Kits Sorted by Width:

17in / 27in Width Systems
Part No.Width (min/max)Total HeightTotal Weight
TJ-1727-02.0-HD-ST-K17in / 27in2.0ft25 lbs
TJ-1727-03.5-HD-ST-K17in / 27in3.5ft47 lbs
TJ-1727-05.0-HD-ST-K17in / 27in5.0ft60 lbs
TJ-1727-07.0-HD-ST-K17in / 27in7.0ft75 lbs
TJ-1727-08.0-HD-ST-K17in / 27in8.0ft85 lbs
TJ-1727-09.0-HD-ST-K17in / 27in9.0ft96 lbs
TJ-1727-12.0-HD-ST-K17in / 27in12.0ft107 lbs
TJ-1727-16.0-HD-ST-K17in / 27in16.0ft217 lbs
22in / 36in Width Systems
Part No.Width (min/max)Total HeightTotal Weight
TJ-2236-02.0-HD-ST-K22in / 36in2.0ft28 lbs
TJ-2236-03.5-HD-ST-K22in / 36in3.5ft49 lbs
TJ-2236-05.0-HD-ST-K22in / 36in5.0ft62 lbs
TJ-2236-07.0-HD-ST-K22in / 36in7.0ft78 lbs
TJ-2236-08.0-HD-ST-K22in / 36in8.0ft93 lbs
TJ-2236-09.0-HD-ST-K22in / 36in9.0ft108 lbs
TJ-2236-12.0-HD-ST-K22in / 36in12.0ft114 lbs
TJ-2236-16.0-HD-ST-K22in / 36in16.0ft217 lbs
25in / 42in Width Systems
Part No.Width (min/max)Total HeightTotal Weight
TJ-2542-02.0 HD-ST-K25in / 42in2.0ft30 lbs
TJ-2542-03.5 HD-ST-K25in / 42in3.5ft52 lbs
TJ-2542-05.0 HD-ST-K25in / 42in5.0ft62 lbs
TJ-2542-07.0 HD-ST-K25in / 42in7.0ft83 lbs
TJ-2542-08.0 HD-ST-K25in / 42in8.0ft97 lbs
TJ-2542-09.0 HD-ST-K25in / 42in9.0ft110 lbs
TJ-2542-12.0 HD-ST-K25in / 42in12.0ft118 lbs
TJ-2542-16.0 HD-ST-K25in / 42in16.0ft248 lbs
34in / 56in Width Systems
Part No.Width (min/max)Total HeightTotal Weight
TJ-3456-02.0 HD-ST-K34in / 56in2.0ft32 lbs
TJ-3456-03.5 HD-ST-K34in / 56in3.5ft59 lbs
TJ-3456-05.0 HD-ST-K34in / 56in5.0ft72 lbs
TJ-3456-07.0 HD-ST-K34in / 56in7.0ft93 lbs
TJ-3456-08.0 HD-ST-K34in / 56in8.0ft104 lbs
34in / 56in9.0ft114 lbs
TJ-3456-12.0 HD-ST-K34in / 56in12.0ft122 lbs
TJ-3456-16.0 HD-ST-K34in / 56in16.0ft217 lbs
40in / 64in Width Systems
Part No.Width (min/max)Total HeightTotal Weight
TJ-4064-02.0 HD-ST-K40in / 64in2.0ft34 lbs
TJ-4064-03.5 HD-ST-K40in / 64in3.5ft64 lbs
TJ-4064-05.0 HD-ST-K40in / 64in5.0ft75 lbs
TJ-4064-07.0 HD-ST-K40in / 64in7.0ft100 lbs
TJ-4064-08.0 HD-ST-K40in / 64in8.0ft108 lbs
TJ-4064-09.0 HD-ST-K40in / 64in9.0ft116 lbs
TJ-4064-12.0 HD-ST-K40in / 64in12.0ft124 lbs
TJ-4064-16.0 HD-ST-K40in / 64in16.0ft217 lbs
52in / 88in Width Systems
Part No.Width (min/max)Total HeightTotal Weight
TJ-5288-02.0 HD-ST-K52in / 88in2.0ft38 lbs
TJ-5288-03.5 HD-ST-K52in / 88in3.5ft72 lbs
TJ-5288-05.0 HD-ST-K52in / 88in5.0ft78 lbs
TJ-5288-07.0 HD-ST-K52in / 88in7.0ft111 lbs
TJ-5288-08.0 HD-ST-K52in / 88in8.0ft121 lbs
TJ-5288-09.0 HD-ST-K52in / 88in9.0ft131 lbs
TJ-5288-12.0 HD-ST-K52in / 88in12.0ft130 lbs
TJ-5288-16.0 HD-ST-K52in / 88in16.0ft248 lbs

These are standard kit sizes. We have stock available to ship. To speak with a technical specialist for help choosing the right size for the job, please contact us at +1(330)259-9009.
