OVERHEAD BRIDGE CRANES

Custom Foundationless Free-Standing Workstation Cranes

Trusted by Worldwide Companies

Kundel’s Overhead Bridge Crane Capacity Options

1/2 ton capacity cranes

1/2 Ton Capacity

Small Light Duty Bridge Cranes
SNAPTRAC Crane Kits

Ships in 7-10 business days, Economical, Durable, Headerless, Requires 4″ concrete, CMAA Class “C” Duty Cycle

3 ton max capacity cranes

3 Ton Capacity

 Push/Pull Overhead Bridge Cranes
KTRAC® Custom Crane Kits

47′ long spans, Internal Conductor Bar, Free-Standing, Headerless, Requires 6″ concrete, CMAA Class “C” Duty Cycle

5 ton max capacity crane

5 Ton Max Capacity

Overhead Workstation Bridge Cranes
STRAC Custom Crane Kits

55′ long spans, External Conductor Bar, Free-Standing, Headerless, Requires 6″ concrete, CMAA Class “C” Duty Cycle

10 ton max capacity crane

10 Ton Max Capacity

 Motorized Overhead Bridge Cranes
TTRAC Custom Crane Kits

55′ spans, Fully Motorized with VFD controls, Freestanding, Requires 8″ concrete, CMAA Class “C” Duty Cycle

Wireless Electric

Wireless Electric

Free Standing Icon

Free Standing

Increased Coverage Icon

Increased Coverage

Highest Standards Icon

Highest Standards

Open End Design Icon

Open End Design

Best End Approach Icon

Best End Approach

FREE-STANDING OVERHEAD BRIDGE CRANES

What are the Benefits of Overhead Cranes?

What Are Overhead Cranes? – Overhead cranes consist of a bridge that spans the width of work area and is connected to the crane runways by endtruck assemblies. These endtruck assemblies have a series of wheels that allow the overhead bridge to travel along the length of the system either on top or below the runways. The crane runways are supported by a series of columns or support posts that are anchored to a concrete floor.

Overhead cranes can also be an integral part of the construction of the building whereas the building is designed to have haunches or supports built into the supporting columns that can support the overhead crane runways and bridge(s).  Typically a building like this costs substantially more than a pre-fabricated building that is only designed to take snow and wind loads applied to the building structure. Whether built-in or placed in an overhead crane will improve your process.

Training Icon

1. Do We Need Overhead Bridge Crane Training?

Overhead crane training and OSHA safety training are instrumental in not only keeping your employees safe, but productive and selecting the right ergonomic solution is key. Training can be supplied by either trained professionals in the area or there are also online classes that you can take that can train your employees on the proper hand signals that are utilized throughout the industry.  These hand signals offer precise communication when verbal communication is not possible. It is very important that the crane operation and the other individuals involved in the lift are on the same page. Monorails and shop cranes keep your work area safe and productive.

Type of Crane Icon

2. Which Type of Crane is Best for our Shop?

There are many type of cranes that can be used in the manufacturing process depending on your specific needs and product work flow. Typically free-standing overhead workstation cranes are ideal for medium to light-duty manufacturing where production and product flow is a concern. Gantry cranes, Jib cranes and monorail cranes are designed for environments without the demand of process flow utilizing many work cells. Gantry cranes typically roll along the floor from area to area, but require multiple people and a smooth and open space whereas jib cranes can either be fixed to a wall mount or floor mount support post and anchored into the concrete floor.

Buying a Crane Icon

3. What  Should Look For in Buying a Crane?

When it comes to overhead cranes you are should always concern yourself how long the supplier has been and business and what kind of references they have of other customers. Also key are the features and benefits hat make sense for your manufacturing workspace like internal electric bar and free-standing columns. Please keep in mind that all cranes are not created equal.  Many may have the same external dimensions required for the project but in fact may have a much different square footage coverage across the factory floor due to design effecting end approach.  You want to make sure over the dollar per square foot of hook coverage.

Headerless Cranes
Open ended design
Crane Headers
No shimming required

Custom Overhead bridge Cranes Designed with Your Shop In Mind

Clear Span Ceiling Supported Cranes
Maximize Floor Space and Reduce Product Flow Restrictions in Production.
Staggered Column Mounted Cranes
Pick and Place Supports Around Your Current Layout to Maximize Effeciency.

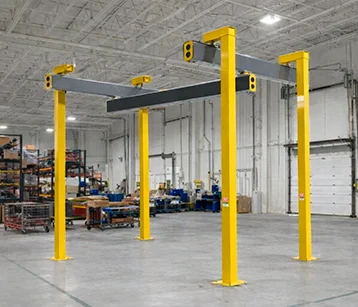

Clear Span Floor Mounted Cranes
Create Large Clear Spans and Increase Your Floor Space Utilization
4 Point Adjustable Support Columns

4 Point Adjustable Support Columns

Adjustable floor plate with slotted anchor holes and four independent jack-studs for easy plumbing and and leveling of each support column separately.

Low Headroom Application Options

Low Headroom Application Options

Maximize your lifting height by utilizing our raised bridge ends that gain 18″ in additional hook height over traditional workstation bridge cranes.

Infinite Adjustable Leveling Bolts

Infinite Adjustable Leveling Bolts

Quickly and easily level up your new KTRAC overhead bridge crane by simply turning and spherical nut to increase or decrease the elevation of the system.

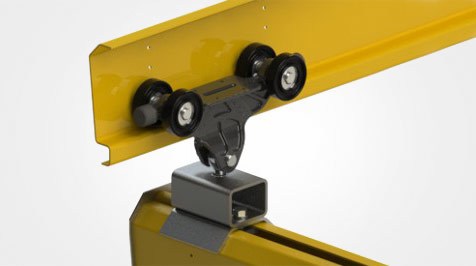

Easy Glide All Cast Steel Endtrucks

Easy Glide All Cast Steel Endtrucks

While other overhead crane manufacturers use thinly stamped steel plates that are electrical spot welded together we have an industry first all cast steel body.
