End Effectors

Hook, Mechanical, Electric and Air

End Effectors: How and what you are lifting determines the best choice of end effector including a hook, vacuum, mechanical or magnetic gripper. For more complicated projects, we offer custom gripper solutions designed to solve any lifting application.

As an alternative to pricey robotics, the design and efficiency of these ergonomic lifting product streamlines assembly work. Improved productivity meets safety with a free range of motion.

Standard Hook

Standard Hook

Built-In 360° Swivel

Up to 660 lbs

Mechanical Gripper

Mechanical Gripper

Built-In 360° Swivel

Up to 660 lbs

Magnetic Gripper

Magnetic Gripper

Built-In 360° Swivel

Up to 220 lbs

Vacuum Gripper

Vacuum Gripper

Built-In 360° Swivel

187 lbs tiltable

END EFFECTORS

Ergonomics, Safety and Efficiency

Versatile Vacuum End effector

A versatile vacuum end effector that meets the highest standards of ergonomics, working environment, safety and efficiency when integrated in Quick-Lift System™.

  • The End effector is easy to use and have a wide range of application possibilities because of the design. The foam shapes accordingly to the lifting object’s surface and this make the end effector useful for a lot of different lifting needs.
  • The Versatile Vacuum End effector offers exceptional safety through built in warning function for insufficient vacuum, blow off and atmospheric pressure function.
  • All these aspects contribute to a high cost efficiency through high reliability and long durability.

Lifting Capacity
Working load limit 15 kg

End Effector’s weight
9 kg

Temperature
For lifting objects -40° – +65°C

Air Supply
Clean dry air, filtered, pressure 6-8 bar

Safety
– 2x safety has to be tested on each lifting object.
– Built in blow off function.
Note: In case of loss of compressed air, the lifting object will drop.

Main functions
– The Versatile Vacuum end effector is equipped with adaptable foam that forms according to the lifting surface.
– It can handle lifting object with uneven surfaces as well as different sizes.

Rounded Bar End Effector

The Rounded Bar end effectors meet the highest standards of ergonomics, working environment, safety and efficiency when integrated in Quick-Lift System™.

  • They are easy to use, thanks to outstanding responsiveness, regardless of load weight.
  • Built in energy save function.
  • Exceptional safety through built in warning function for insufficient vacuum, blow off and atmospheric pressure function.
  • High cost efficiency through high reliability and long durability.
  • The Rounded bar end effectors provide strong solutions for quick and easy handling.

Lifting Capacity
– Max. 30 kg (Rotated 90 Deg. option)
Note: Maximum lifting capacity is 30 kg when lifting in COG. The lifting capacity varies depending lifting object shape and gripping position.
– Max. 45 kg (Rotated 90 Deg. option)
Note: Maximum lifting capacity is 45 kg when lifting in COG. The lifting capacity varies depending lifting object shape and gripping position.

Temperature
For lifting objects 0-90°C.

Safety
– 2x safety has to be applied on each lifting object.
– Safety function thanks to an integrated metal sensor that prevent lifting if not correct gripped – Stop-up

Vacuum End Effector with Tilt 85/60 kg

A tiltable end effector that, when integrated in Quick-Lift System™, meets the highest standards of ergonomics, working environment, safety and efficiency.

  • Easy to use, thanks to outstanding reaction, regardless of load weight. Built-in energy save function.
  • Exceptional safety through built in warning function for insufficient vacuum, blow off and atmospheric pressure function.
  • High cost efficiency through high reliability and long durability.
  • A strong solution for quick and easy handling.
Lifting capacity
For normal use on flat, dense and not greasy materials.
Recommended vacuum level at 60 kPa.
– Horizontal – Max. 85 kg
– Vertical – Max. 60 kg

Temperature
For lifting objects with temperature 0-90°C

End Effector’s weight
9 kg / 20 lbs

Air supply
Clean dry air, filtered, pressure 6.0-8.0 bar is required.

Safety
– 2x safety has to be tested on each lifting object.
With built-in-blow-off function, atmospheric pressure function and warning for insufficient vacuum.

Other
– The Vacuum end effector is actuated by the lower buttons on the handle.
– Handle with vacuum ejector and mechanical swivel is included.
– No Quick-Lift Arm or Rail system is included.

Options
Quick-coupling, Quick-coupling pin and flange for connecting end effector to Quick-Lift control unit.

For more options see document: Options

Magnetic End Effector Pneumatic 110 kg

An end effector that, when integrated in Quick-Lift System™, meets the highest standards of ergonomics, working environment, safety and efficiency.

  • Unique integrated mechanical, electrical, pneumatic swivel enables continuous rotation of the end effector.
  • Easy to use, thanks to outstanding reaction, regardless of load weight.
  • Exceptional safety is achieved using our intelligent control systems.
  • High cost efficiency through high reliability and long durability.
  • A strong solution for quick and easy handling.

Lifting capacity
Maximum lifting capacity varies depending on the shape of the object to be lifted.
Note: The lifting capacity is reduced when the center of gravity of the object to be lifted is eccentric.

Steel plate
Sheet metal thickness from 3 to 25mm, max 110kg.

Round steel
Round steel parts from ø25 to 120mm, max 110kg

Air supply
– Clean dry air, filtered.
– Pressure 6,0 -8,0 bar is required

Safety
3x safety must be applied on each lifting object

Magnetic End Effector Pneumatic 275 kg

A flexible end effector that, when integrated in Quick-Lift System™, meets the highest standards of ergonomics, working environment, safety and efficiency.

  • Unique integrated mechanical, electrical, pneumatic swivel enables continuous rotation of the end effector.
  • Easy to use, thanks to outstanding responsiveness, regardless of load weight.
  • Exceptional safety is achieved using our intelligent control systems.
  • High cost efficiency through high reliability and long durability.
  • A strong solution for quick and easy handling

Lifting capacity
Maximum lifting capacity varies depending on the shape of the object to be lifted.
Note: The lifting capacity is reduced when the center of gravity of the object to be lifted is eccentric.

Steel plate
Sheet metal thickness from 3 to 25mm, max 110kg.

Round steel
Round steel parts from ø25 to 120mm, max 110kg

Air supply
– Clean dry air, filtered.
– Pressure 6,0 -8,0 bar is required

Safety
3x safety must be applied on each lifting object

Quick-coupling

To be used to attach a mechanical end effector to your control unit.

  • The quick-coupling enables quick and easy handling of mechanical end effectors, such as i.e Hook M25 x 1,5 or any other mechanical end effector equipped with a Quick-coupling pin.
  • High cost efficiency through high reliability and fast handling.
Lifting capacity
Max. 300 kg / 600 lbs

Weight
1.3 kg / 2.9 lbs

Application area
Applicable on Quick-Lift Control handle for mechanical end effectors, Control handle with pneumatic 5/2 valve and Control handle with vacuum ejector.

For more information see document: Options

Options
– Quick-coupling pin.

For more options see document: Options

Hook – Articulated with Spring Locking, M25x1,5

To be used together with Quick-Lift Quick-Coupling or when a fixed installation to the control unit is required.

Lifting capacity
Max. 300 kg / 600 lbs

Safety
Safety Class 8

Weight
0,6 kg / 1,3 lbs

Other
To be used when it is required that the hook have a fixed installation to the handle.
Note: Minimum 10 full threads are required

Options
For available options, see document: Options

Hook – Articulated with Spring Locking

To be used together with Quick-Coupling or when a fixed installation to the control unit is required.

Lifting capacity
Max. 300 kg / 600 lbs

Safety
Safety Class 8

Weight
0.5 kg / 1.1 lbs

Options
– Quick-coupling.

For more options see document: Options

Safety Hook – Articulated with Detent Lock

To be used together with Quick-Coupling or when a fixed installation to the control unit is required.

Lifting capacity
Max. 300 kg / 600 lbs

Safety
Safety Class 8

Weight
0,5 kg / 1,1 lbs

Options
– Quick-coupling.

For more options see document: Options

Ergo Glass Fixed

The Ergo Glass™ end effector that, when integrated in Quick-Lift System™, meets the highest standards of ergonomics, working environment, safety and
efficiency.

  • Originally equipped with fixed oval shaped suction plate for flat surfaces. Can be customized with two round suction cups.
  • Modular design of the vacuum suction interface creates unlimited possibilities for customized solutions.
  • Maximum security due to a combination of sound and visual alarms activated in case of pressure drop or lack of vacuum.
  • With integrated “anti-drop” and energy saving as standard this end effector provides a first class solution.

Lifting Capacity
Glass panels : 90/180/250kg depending on configuration of the suction cup/cups.

End effectors’ weight
Max 15 kg depending on lifting capacity.

Main functions
– Equipped with fixed one (oval) or two (round) suction cups.
– The control handle provides a logic and simple interface for the operator for up and down movement as well push buttons for grip and release of the glass panels.
– The control box at the top provides setting of adjustable speed depending of the application.

Air Supply
Clean dry air, pressure 6-8 bar.

Safety
– 1 or 2 suction cups depending on configuration with a safety factor of 4.
– Both audio (buzzer) and visual (red lamp) indication when insufficient vacuum.
– Up movement is automatically restricted when too low vacuum is detected.
– Load is continuously supervised by the Quick-Lift and can only be released once end effector is landed on surface.

Ergo Glass Pneu. Rotation & Tilt

The Ergo Glass™ end effector that, when integrated in Quick-Lift System™, meets the highest standards of ergonomics, working environment, safety and efficiency.

  • Easy to use, thanks to outstanding responsiveness, regardless of load weight. High cost efficiency through built in energy save function, high reliability and long durability.
  • The sensitive manoeuvre handle provides the operator a precise and controlled movement of the glass panel.
  • Equipped with a unique combined stepless pneumatic tilt and rotation movement of the suction cups.
  • Modular design of the vacuum suction interface creates unlimited possibilities for customized solutions.
  • The position of the suction cups can be configurated according to the dimensions of the glass panel and the position can easily be adjusted.
  • Maximum security due to a combination of sound and visual alarms activated in case of pressure drop or lack of vacuum.
  • With integrated “anti-drop” and energy saving as standard this end effector provides a first class solution.

Lifting Capacity
Glass panels : 65/115/150 kg depending on configuration of the suction cups.

End effectors’ weight
Max 34 kg depending on lifting capacities.

Main functions
– Equipped with fixed one or two (round) suction cups.
– The control handle provides a logic and simple interface for the operator for up and down movement as well push buttons for grip and release of the glass panels.
– The control box at the top provides setting of adjustable speed depending of the application.
– The control box at the top provides setting of adjustable speed depending of the application.
– Pneumatic rotation and tilt glass panels.
– Main direction of suction cups is to be defined.
– 1 Rotative head mounted on free bearing End effector with driven rotation. Vertical portrait towards flat laying.

Air Supply
Clean dry air, pressure 6-8 bar.

Safety
– 1 or 2 suction cups with a safety factor of 4.
– Both audio (buzzer) and visual (red lamp) indication when insufficient vacuum.
– Up movement is automatically restricted when too low vacuum is detected.
– Load is continuously supervised by the Quick-Lift and can only be released once end effector is landed on surface.

Options
Vacuum tank (in case of insufficient vacuum).

Ergo Glass with Pneumatic Tilt

The Ergo Glass™ end effector that, when integrated in Quick-Lift System™, meets the highest standards of ergonomics, working environment, safety and efficiency.

  • Easy to use, thanks to outstanding responsiveness, regardless of load weight. High cost efficiency through built in energy save function, high reliability and long durability.
  • The sensitive manoeuvre handle provides the operator a precise and controlled movement of the glass panel.
  • Equipped with stepless tiltable movement of the suction cups.
  • Modular design of the vacuum suction interface creates unlimited possibilities for customized solutions.
  • Maximum security due to a combination of sound and visual alarms activated in case of pressure drop or lack of vacuum.
  • With integrated “anti-drop” and energy saving as standard this end effector provides a first class solution.

Lifting Capacity
Glass panels : 50-215 kg depending on configuration of the suction cups.

End effectors’ weight
End effector weight somewhere between 30-100 kg, depending on end effector’s size and lifting capacity.

Main functions
– Equipped with one or more fixed suction cups.
– The control handle provides a logic and simple interface for the operator for up and down movement as well push buttons for grip and release of the glass panels.
– The control box at the top provides setting of adjustable speed depending of the application.
– Pneumatic tilt of glass panels.
– Main direction of suction cups is to be defined. Degree of tilt is 0-90°.

Air Supply
Clean dry air, pressure 6-8 bar.

Safety
– Suction cups with a safety factor of 4.
– Both audio (buzzer) and visual (red lamp) indication when insufficient vacuum.
– Up movement is automatically restricted when too low vacuum is detected.
– Load is continuously supervised by the Quick-Lift and can only be released once end effector is landed on surface.

Options
Vacuum tank (in case of insufficient vacuum).

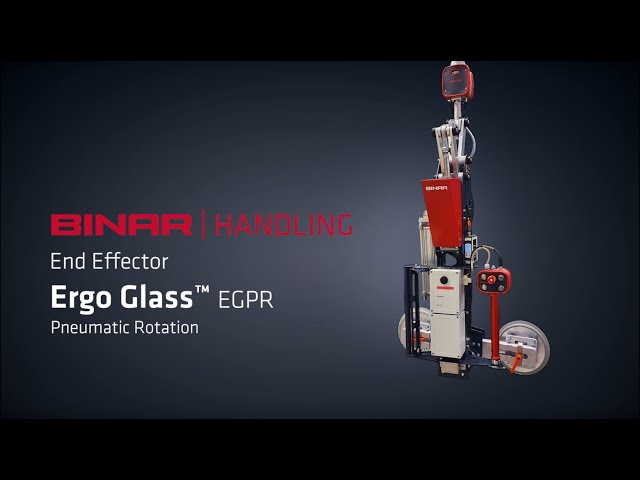

Ergo Glass Rotation

The Ergo Glass™ end effector that, when integrated in Quick-Lift System™, meets the highest standards of ergonomics, working environment, safety and efficiency.

  • Easy to use, thanks to outstanding responsiveness, regardless of load weight. High cost efficiency through built in energy save function, high reliability and long durability.
  • The sensitive manoeuvre handle provides the operator a precise and controlled movement of the glass panel.
  • Equipped with a stepless rotation of the suction cups as well as a pneumatic changeable center of gravity point. Available with either manual or pneumatic controlled rotation.
  • Modular design of the vacuum suction interface creates unlimited possibilities for customized solutions.
  • The position of the suction cups can be configurated according to the dimensions of the glass panel.
  • Maximum security due to a combination of sound and visual alarms activated in case of pressure drop or lack of vacuum.
  • With integrated “anti-drop” and energy saving as standard this end effector provides a first class solution.

Lifting Capacity
Glass panels : 80/150/240 kg depending on configuration of the suction cups.

End effectors’ weight
– 55 kg Max, with manual rotation.
– 61 kg Max, with pneumatic rotation option.

Main functions
– Equipped with two fixed round suction cups.
– The control handle provides a logic and simple interface for the operator for up and down movement as well push buttons for grip and release of the glass panels.
– The control box at the top provides setting of adjustable speed depending of the application.
– Manual rotation of glass panels.
– Pneumatic controlled center of gravity (COG).
– Main direction of suction cups is to be defined. Degree of rotation is 0-180°.

Air Supply
Clean dry air, pressure 6-8 bar.

Safety
– 2 suction cups with a safety factor of 4.
– Both audio (buzzer) and visual (red lamp) indication when insufficient vacuum.
– Up movement is automatically restricted when too low vacuum is detected.
– Load is continuously supervised by the Quick-Lift and can only be released once end effector is landed on surface.

Options
– Additional pneumatic cylinder built in for inclination (approx 10°).
– Vacuum tank (in case of insufficient vacuum).
– Pneumatically controlled rotation of glass panels.
– Degree of rotation 0-90°.

Ergo Glass™ 360° Continuous Pneumatic Rotation

The Ergo Glass™ end effector that, when integrated with Quick-Lift System™, meets the highest standards of ergonomics, working environment, safety and efficiency.

  • Easy to use, thanks to outstanding responsiveness, regardless of load weight. High cost efficiency through built in energy save function, high reliability and long durability.
  • The sensitive manoeuvre handle provides the operator a precise and controlled movement of the glass panel.
  • The Ergo Glass™ 360° Continuous Pneumatic Rotation is originally equipped with two round Ø180mm shaped suction cups for flat surfaces. Can be customized with other dimensions and types of suction cups.
  • The modular design of the vacuum suction interface creates unlimited possibilities for customized solutions.
  • Maximum security due to a combination of sound and visual alarms activated in case of pressure drop or lack of vacuum.
  • With integrated “anti-drop” and energy saving as standard this end effector provides a first class solution.

Main functions
– Standard equipped with two round suction cups, more suction cups and Ø can be added or changed for customization.
– Equipped with pneumatic controlled continuous rotation, in both directions, including pneumatic adjustable center of gravity.
– The control handle provides a logic and simple interface for the operator for up and down movement as well as pushbuttons for grip and release of the glass panels
– The control box at the top provides settings to adjust speed depending on the application.

Lifting Capacity
Glass panels: 65/96/116/162kg depending on the configuration of the suction cups.

End effector weight
– 58 kg / 128 lbs
Max depending on lifting capacity.

Air supply
Clean dry air, pressure 6-8 bar

Safety
– 2 suction cups with a safety factor of 4.
– Both audio (buzzer) and visual (red lamp) indication when insufficient vacuum or air pressure.
– Up movement is automatically restricted when too low vacuum is detected.
– Load is continuously supervised by the Quick-Lift and can only be released once the end effector is landed on the surface.

QUOTE REQUEST

A knowledgeable Kundel specialist will help you

To request a quote, please complete this form. We will respond within one business day. If you have a more urgent request, please call us at 330.259.9009 for immediate assistance.
